Fig. 1. Existing dripline for irrigation allows for an easy transition to insecticide chemigation. (Photo: Steve Schoof)
Background
Pesticides are a key component of commercial vegetable production in the United States, especially in fresh market production where the tolerance for damaged and unmarketable fruit is very low. The traditional method for applying insecticides to manage insect pests is foliar spraying using high pressure boom sprayers. Chemigation is the application of agrochemicals (pesticides and fertilizers) to crops through drip irrigation systems.
Fig. 2. Damage to tomato fruit caused by caterpillar pests (such as tomato fruitworm) makes fruit unmarketable. (Photo: Steve Schoof)
Despite the overall success of foliar applications for managing insect pests, there are several drawbacks including risks to human and environmental health. Drift associated with spraying pesticides is also a common source of conflict in regions where urban and agricultural areas interface. These problems can be reduced or eliminated by switching to drip chemigation. The purpose of this publication is to inform growers of chemigation, highlight some of its important benefits (including efficacy, production costs, and farmworker, consumer, and environmental health), and demonstrate how to use a chemigation system on your farm.

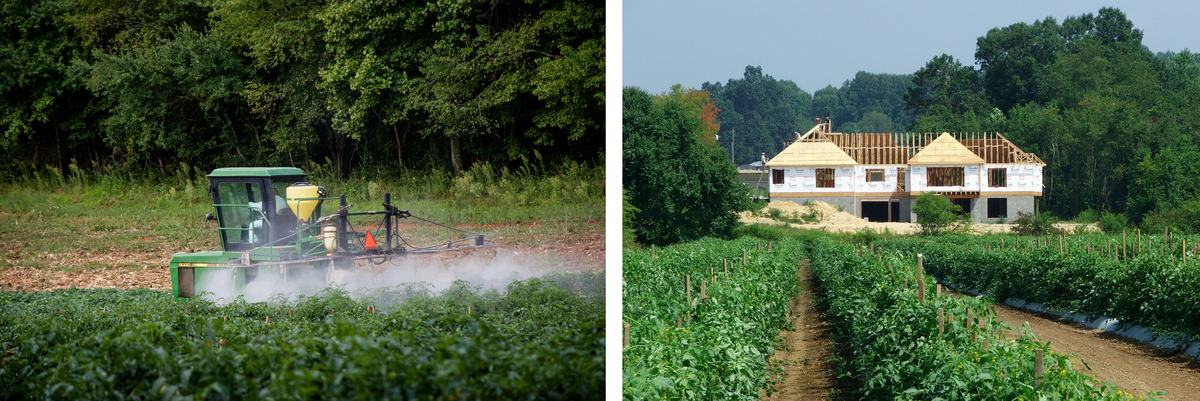

Fig. 3. Foliar insecticide applications can become a source of conflict when urban and suburban areas interface with agriculture. (Photos: Steve Schoof)
Advantages and Disadvantages of Using Chemigation
Insecticide Fate: Systemic insecticides applied through drip irrigation are delivered directly to the root zone of plants, where they are taken up by the roots and translocated to various tissues. Since insecticide residues are in the plant’s vascular system, as opposed to on plant surfaces with foliar sprays, the insects affected are those that feed directly on the plant itself. It is therefore considered safer to non-target organisms present in agricultural fields, such as natural predators of plant pests. These differences in how insecticides are applied and where they end up in the plant and surrounding environment are the basis for chemigation’s benefits to farmworkers, consumers, and environmental health.
Fig. 4. Reducing or eliminating foliar insecticide applications helps to protect natural predators. Lady beetle adults (center) and larvae (right) are effective predators of aphids. (Photo: Steve Schoof)
Fig. 5. Chemigation reduces insecticide residues on plant surfaces, improving the safety of farmworkers. (Photo: Steve Schoof)
Insecticide Choice: Insecticides used in chemigation must have systemic activity so that they can be absorbed by root systems and moved throughout the plant. These insecticides tend to be more selective to targeted insect pests (with less toxicity to non-target insects and humans) compared to non-systemic insecticides that rely largely on contact activity. Insecticide classes used in chemigation include neonicotinoids, diamides, and oxadiazines (indoxacarb). Insecticide classes that cannot be used (with some exceptions) include many of the older broad-spectrum carbamates, pyrethroids, and organophosphates. The benefits of chemigation discussed here include insecticides applied through drip irrigation and not through overhead sprinkler irrigation, which can still result in several of the drawbacks common to foliar applications.
| Advantages | Disadvantages |
| Insecticides are more selective to target pests with less toxicity to non-target organisms, including humans, natural enemies, and non-pest insects in agricultural fields. | Insecticides used in drip chemigation are generally newer products, and hence more expensive. However, price will decline as patents expire. |
| Elimination of spray drift, which reduces exposure to farmworkers, adjacent properties, non-target organisms, and the environment. | Some insecticides can be present in nectar and pollen, exposing them to pollinators. (Studies in cucurbits have shown accumulation in nectar and pollen are similar with chemigation and foliar application – see Dively and Kamel 2012.) |
| Chemical input is low, as drip chemigated insecticides often provide control for months. Less overall amount of insecticide is applied, reducing amount introduced into a field. | |
| Insecticide residues are contained within plants or in subsurface soil near the root system, with low potential for runoff into surface waters or leaching into groundwater. |
Pest Control Attributes of Drip Chemigation
- Pest management efficacy is comparable, or better, than foliar treatments. Longer residual activity results in fewer insecticide applications required.
- Cost of insecticide inputs and net profits are comparable, or better, than foliar treatments
- Very few days lost to re-entry intervals (REI) and pre-harvest intervals (PHI), permitting greater flexibility scheduling field labor activities.
- Increased flexibility in timing of insecticide applications. Chemigation is not influenced by wind, muddy fields, or other environmental factors.
- Increased predictability and regularity of insecticide applications. Chemigated insecticides become active within a few days and still act quickly enough to utilize action thresholds. (Van Timmeren et al. 2011).
- Without the need to apply insecticides by driving heavy equipment around a field, soil compaction is reduced, less fuel is required for operating equipment, and general wear and tear on equipment is reduced.
- Currently available insecticides for chemigation have been shown to manage stink bugs, caterpillars, whiteflies, aphids, beetles, leafminers and foliar infestations of thrips. Currently, there are no pesticides used in drip chemigation to manage spider mites, but biocontrol using the predatory mite P. persimilis can be highly effective. Management of cabbage looper may require an additional insecticide application.
- For those not familiar with drip irrigation systems, there is a cost and learning investment required.
Fig. 6. Insecticides used in chemigation are effective at managing most insect pests in vegetables, such as whiteflies, aphids, and caterpillars. (Photos: Steve Schoof and Jim Walgenbach)
Fig. 7. Chemigation increases accessibility to fields by reducing re-entry intervals (REI) and pre-harvest intervals (PHI). (Photo: Steve Schoof)
How to Use & Safety
Vegetable crops already grown on plastic mulch with drip irrigation can be easily adapted to utilize chemigation. This is especially true for growers injecting fertilizers through drip irrigation (drip fertigation), because the same equipment and concepts are used. However, the regulations required for chemigation of pesticides versus fertilizers is more stringent to avoid contamination of water resources. The most important requirement for injecting pesticides into drip irrigation systems is for a double check valve system between the point of pesticide injection and the water resource. These water sources include private ponds, public water systems, streams, lakes, and canals. The figure below illustrates the requirements for safely using chemigation. For more information refer to the N.C. Department of Agriculture and Consumer Services’ publication on chemigation and fertigation:

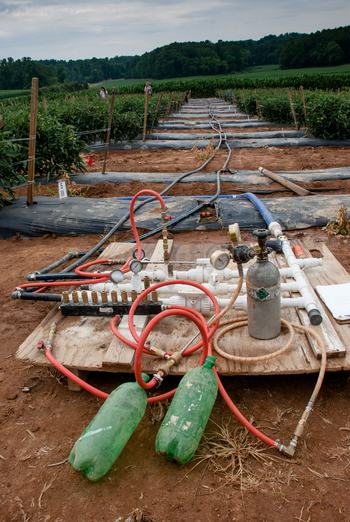

Fig. 8. Drip chemigation setup used in experimental field trials in staked tomatoes. (Photo: Steve Schoof)
Fig. 9. Simplified schematic of chemigation setup with safety check valves indicated.
To ensure the efficacy and even distribution to the crop, the insecticide should be injected at a point in the water flow to ensure thorough mixing with the irrigation water and effective delivery, while also occurring continuously and uniformly during the irrigation cycle. Depending on the insecticide being used, the timing of injection will vary. Generally, those pesticides with lower water solubility (e.g., diamides as well as imidacloprid) should be injected toward the beginning of the irrigation cycle to effectively push the compound into the root zone. Pesticides with higher water solubility (e.g., thiamethoxam and dinotefuran) should be injected more toward the middle of the irrigation cycle, as injecting it earlier may increase the risk of leaching it out of the root zone (Ghidiu et al. 2012). Following injection, the irrigation system should be run for enough time to ensure that all insecticides are flushed from the drip line. Ideally, the time period during which injection occurs should be equal to the length of time it takes water to travel from the point of injection to the farthest drip emitter in the field.

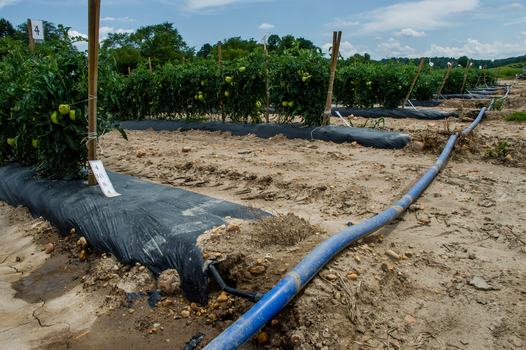

Fig. 10. Drip tape in mulched beds can provide irrigation, fertigation, and insecticide chemigation. (Photo: Steve Schoof)

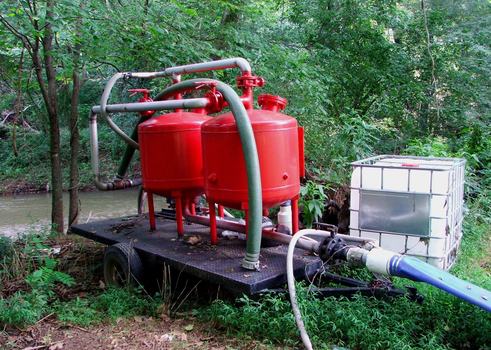

Fig. 11. A media filtration system is used to remove debris from the water source. Pesticide injection must be on the outlet side of all media filters to prevent contamination of filter media. (Photo: Steve Schoof)
Conclusions
The many benefits of chemigation for managing insect pests in vegetables outweigh the drawbacks and initial investment expenditures to make it a reliable and cost-effective pest management option. More insecticide options will become available, and costs will decrease as patents expire for a number of diamides and other systemic insecticides. Chemigation offers growers the potential to manage insect pests of fruiting vegetables and other crops with improved pest control, cost savings, and protection of consumers, farmworkers, and the environment.
Drip Chemigation Recommendations for Fruiting Vegetables
| Chemical Class (IRAC) | Common name | Example product | Flea beetles | Corn earworm* | European corn borer | Fall armyworm | Beet armyworm* | Cabbage looper** | Stink bugs/Harlequin bug | Aphids* | Thrips | Western flower thrips* | Whiteflies* |
| 4A | imidacloprid | Admire | G | I | I | I | I | I | F | E | G | I | E |
| clothianidin | Belay | E | I | I | I | I | I | G | E | G | I | F | |
| thiamethoxam | Platinum | E | I | I | I | I | I | G | E | F | I | G | |
| dinotefuran | Venom/Scorpion | E | I | I | I | I | I | E | I | F | I | G | |
| 4D | flupyradifurone | Sivanto | I | I | I | I | I | I | I | E | I | I | E |
| 28 | chlorantraniliprole | Coragen | I | E | E | E | E | G | I | I | F | I | G |
| cyantraniliprole | Verimark | G | E | E | E | E | G | I | G | F | F | G | |
| 29 | Flonicamid*** | Beleaf | I | I | I | I | I | I | I | E | G | E | G |
|
(E=excellent, G=good, F=fair, I=ineffective or insufficient data) * Denotes that insecticide-resistant populations may occur in some areas and can affect the performance of insecticides. ** Chemigated diamides do not provide long-term, consistent control of cabbage looper, and additional foliar insecticide applications may be necessary, especially for late-season infestations. *** Flonicamid (Beleaf) is registered for drip chemigation only for greenhouse-grown tomatoes and peppers. Not all insecticdes listed are registered on all vegetable crops. Refer to label before applying to a specific crop. Ratings area based on a consensus of vegetable entomologists in the southeastern United States. |
|||||||||||||
Drip Chemigation Recommendations for Cucurbits
| Chemical class (IRAC) | Common name | Example product | Cucumber beetles | Cabbage looper** | Squash vine borer | Stink bug/Harlequin bug | Squash bug | Aphids* | Thrips | Western flower thrips* | Whiteflies* |
| 4A | imidacloprid | Admire | E | I | I | F | G | E | G | I | G |
| acetamiprid | Assail | G | I | F | F | F | E | G | I | G | |
| clothianidin | Belay | G | I | I | G | G | G | I | I | F | |
| thiamethoxam | Platinum/Actara | G | I | I | G | G | E | F | I | G | |
| dinotefuran | Venom/Scorpion | G | I | I | G | G | F | G | I | G | |
| 4C | sulfoxaflor | Closer/Transform | I | I | I | F | F | E | F | I | E |
| 4D | flupyradifurone | Sivanto | I | I | I | I | I | E | I | I | G |
| 28 | chlorantraniliprole | Coragen | I | E | G | I | I | I | F | I | G |
| cyantraniliprole | Verimark/Exirel | I | E | G | I | I | G | F | F | G | |
| cyclaniliprole | Harvanta | I | G | G | I | I | I | F | F | F | |
| 29 | flonicamid | Beleaf | I | I | I | I | I | E | G | E | F |
|
(E=excellent, G=good, F=fair, I=ineffective or insufficient data) * Denotes that insecticide-resistant populations may occur in some areas and can affect the performance of insecticides. ** Cabbage looper is not as consistently controlled with chemigated diamides and may require additional insecticide applications, especially for late-season infestations. Not all insecticides listed are registered on all vegetable crops. Refer to label before applying to a specific crop. Ratings are based on a consensus of vegetable entomologists in the southeastern United States. |
|||||||||||
Recommended Timeline for Drip Chemigation in Fruiting Vegetables
| Weeks after transplanting | Insecticide (amount/acre) | Target pest(s) |
|
0 (transplant tray treatment) |
Imidacloprid (various brands and formulations)*
|
Aphids, whiteflies, flea beetles, tobacco thrips. Do not apply more than 4 days before setting in the field. |
| 3 weeks, or at flowering |
Chlorantraniliprole (Coragen 1.67SC, 4 to 5 oz per acre) + Imidacloprid*
Or
|
Fruitworms, armyworms, whiteflies, aphids, flea beetles. |
| 5 to 6 weeks, or 21 days before harvest |
Dinotefuran
|
Stink bugs, whiteflies, flea beetles. |
| 8 weeks |
|
Fruitworms, armyworms, whiteflies. |
| * There are numerous generic formulations of imidacloprid that can be used in place of Admire Pro. Be sure to read the label for rates, because different products contain different amounts of active ingredients. | ||
Recommended Timeline for Drip Chemigation in Cucurbits
| Application timing | Insecticide (amount/acre) | Target pest(s) |
| First true leaf stage |
Admire (imidacloprid) 7 to 10.5 fl oz, or Belay (chlothianidin) 4.8 to 6.4, or Platnium (thiamethoxam) 1.7 to 3.7 fl oz |
Cucumber beetles, aphids, whiteflies. |
| First fruiting | Coragen (chlorantraniliprole) 3.5 to 4 fl oz | Pickleworm. On early season crops where harvest is completed by August, pickleworm control is often not needed. |
| Mature fruit present | Pyrethroids (numerous brands) - see label | Foliar applications may be necessary to prevent adult cucumber beetles from causing fruit scarring. Potential for damage is highest on cucumbers. |
Additional Resources
References
For specific examples of successfully chemigated diamides, see: Palumbo 2008, Kuhar et al. 2008, 2010, Ghidiu et al. 2009, Schuster et al. 2009, Walgenbach and Schoof, 2009, 2011, 2017, Walgenbach et al. unpublished.
For specific examples of successfully chemigated neonicotinoids, see: Kerns and Palumbo 1995, Palumbo 1997, Palumbo et al. 2001, Kuhar and Speese 2002, Edelson and Otieno 2003, Walgenbach and Schoof 2009, 2010, 2011, 2015 2017, Aigner et al. 2015, Walgenbach et al. unpublished.
Aigner, J. D., Walgenbach, J. F., and T. P. Kuhar. 2015. Toxicities of neonicotinoid insecticides for systemic control of brown marmorated stink bug (Hemiptera: Pentatomidae) in fruiting vegetables. J. Agric. Urban Entomol. 31: 70-80.
Dively, G. P. and A. Kamel. 2012. Insecticide residues in pollen and nectar of cucurbit crop and their potential exposure to pollinators. J. Agric. Food Chem. 60: 4449-4456.
Edelson, J. V., and O. Otieno. 2003. Greenhouse bioassays of systemic insecticides to control squash bug, 2001. Arthropod Manag. Tests 28.
Ghidiu, G. M., D. L. Ward, and G. S. Rogers. 2009. Control of European corn borer in bell peppers with chlorantraniliprole applied through a drip irrigation system. Int. J. Veg. Sci. 15: 193–201.
Ghidiu, G., Kuhar, T., Palumbo, J., Schuster, D., 2012. Drip chemigation of insecticides as a pest management tool in vegetable production. J. Integr. Pest Manag. 3: 1-5.
Jiang, H., Tian, Y., Yan, W., Chen, J., Zhang, Z., and X. Hanhong. 2020. Drip chemigation of flonicamid effectively controls cotton aphid (Aphis gossypi) and is benign to lady beetle (Coccinella septempunctata) and lacewing larva (Chrysoperla sinica). Crop Protection 129: in press.
Kerns, D. L., and J. C. Palumbo. 1995. Using Admire on desert vegetable crops. IPM Series No. 5, University of Arizona Cooperative Extension Publication No. 195017.
Kuhar, T. P., and J. Speese. 2002. Evaluation of drip line injected and foliar insecticides for controlling cucumber beetle in melons, 2001. Arthropod Manag. Tests 27: E46.
Kuhar, T. P., Walgenbach, J. F., and Doughty, H. B. 2010. Control of Helicoverpa zea in tomatoes with chlorantraniliprole applied through drip chemigation. Online. Plant Health Progress doi:10.1094/PHP-2009-0407-01-RS.
Kuhar, T. P., H. Doughty, E. Hitchner, and M. Cassell. 2008. Evaluation of insecticide treatments for the control of lepidopteran pests in bell peppers in Virginia, 2007. Arthropod Manag. Tests 33: E7.
Palumbo, J. C. 1997. Evaluation of aphid control in lettuce with Admire applied through drip irrigation. Arthropod Manag. Tests 22: 61E.
Palumbo, J. C. 2008. Systemic efficacy of Coragen applied through drip irrigation on romaine lettuce, fall 2007. Arthropod Manag. Tests 33: E24.
Palumbo, J. C., C. H. Mullis, F. J. Reyes, A. Amaya, L. Ledesma, and L. Carey. 2001. Neonicotinoids and azadirachtin in lettuce: comparison of application methods for control of lettuce aphids. In D. N. Byrne and P. Baciewicz (eds.), 2001 Vegetable Report, University of Arizona, Publication No. 1252.
Ristaino, J. B., and S. A. Johnston. 1999. Ecologically based approaches to management of Phytopthera blight on bell peppers. Plant Disease 83: 1080 –1089.
Schuster, D. J., A. Shurtleff, and S. Kalb. 2009. Management of armyworms and leafminers on fresh market tomatoes, fall 2007. Arthropod Manag. Tests 34: E79.
Van Timmeren, S., Wise, J.C., Isaacs, R., 2012. Soil application of neonicotinoid insecticides for control of insect pests in wine grape vineyards. Pest Manag. Sci. 68: 537-542.
Walgenbach, J.W. and S.C. Schoof. 2010. Tomato chemigation study, 2009. Arthropod Manag. Tests 35: E44 doi: 10.4182/amt.2010.E44
Walgenbach, J.W. and S.C. Schoof. 2011. Tomato chemigation study, 2010. Arthropod Manag. Tests 36: E90 doi: 10.4182/amt.2011.E90
Walgenbach, J.W. and S.C. Schoof. 2015. Chemigation – Applied Neonicotinoids for stink bug control on tomatoes, 2014. Arthropod Manag. Tests 40: E67.
Walgenbach, J.W. and S.C. Schoof. 2009. Tomato chemigation study, 2008. Arthropod Manag. Tests 34: E88 doi: 10.4182/amt.2009.E88
Walgenbach, J.W. and S.C. Schoof. 2011. Pepper chemigation study, 2010 Arthropod Manag. Tests 36: E58 doi: 10.4182/amt.2011.E58
Walgenbach, J.W. and S.C. Schoof. 2017. Drip chemigation of diamides and neonicotinoids in tomato, 2015. Arthropod Manag. Tests 42: doi: 10.1093/amt/tsx052
Walgenbach, J. W., Bilbo, T. R., Ogburn, E. O, and D. A. Tussey. Chemigation vs. foliar insecticide use: Management of lepidopteran larvae and stink bugs in North Carolina field tomatoes with environmental and farmworker benefits. Unpublished.
